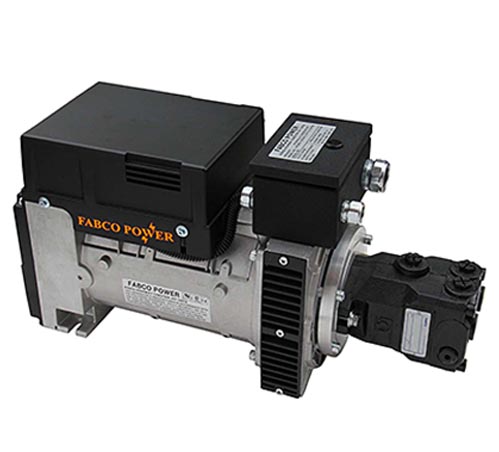

TRI-POWER 3 PHASE GENERATOR FOR WELDER OPTION ON BOOM LIFTS
The TRI-POWER SERIES ® is a hydraulically driven 3 phase AC generator perfect for the welder option on boom lifts. The Tri-Power Series delivers a full 275 WELDING AMPS for both Miller and Lincoln 3 Phase Welders. The Tri-Power is lightweight and is the most compact 10.5KW generator on the market. Combine that with the plug & play installation making the Tri-Power easy to install. The Tri-Power Series is maintenance free and is available with your choice of a Piston or a Gear Type Motor.
SPECIFICATIONS PISTON MOTOR | |
MODEL | Hydro 10.5KP-C-N-3 |
Volts | 120/208, 3PH - 120 Single PH |
Amps | 30 Amps per phase |
Watts | 10,500 - 3PH, 5,000 Single PH |
RPM | 3600 |
Phase | 3-Phase & Single Phase |
Power Factor | 0.8 |
Weight | 112 lbs |
Motor | Piston Type |
Dimensions | 22.75” l x 8.75” w x 11” h |
PSI | GPM |
2900 | 11 |
2400 | 15 |
1800 | 21 |
SPECIFICATIONS GEAR MOTOR | |
MODEL | Hydro 10.5K-C-N-3 |
Volts | 120/208, 3PH - 120 Single PH |
Amps | 30 Amps per phase |
Watts | 10,500 - 3PH, 5,000 Single PH |
RPM | 3600 |
Phase | 3-Phase & Single Phase |
Power Factor | 0.8 |
Weight | 109 lbs |
Motor | Gear Type |
Dimensions | 21” l x 8.75” w x 11” h |
PSI | GPM |
3000 | 10 |
2300 | 16 |
The Super-V coolers’ unique compact design pulls high velocity air through the “V” cut-out section in the reservoir removing the heat from the surrounding oil flow. The system is a completely sealed to prevent moisture or small particles from contaminating the hydraulic oil. The filter cap will vent air at 4 PSI.
DIMENSIONS:
16.5”W x 13”D x 12.4H
To maintain a constant
generator RPM
and voltage output
