FIGHT FIRE WITH FIRE-POWER

THE FIRST MODULAR, SELF-ADJUSTING HYDRAULICALLY DRIVEN A/C GENERATOR MADE EXCLUSIVELY FIRE TRUCKS

Fire Power Hydraulic Modular Generator

Available in 7.5kw & 10kw

INNOVATION

The Fire-Power™ Fire Truck Generator Series was developed exclusively for the fire and rescue industry. As fire and rescue equipment becomes more sophisticated, the need for safe, reliable and precise electric power has become essential.

The Fire-Power™ Fire Truck Generator system delivers and maintains a constant 120/240 volts at 60 cycles of continuous "precise" regulated electric power, even with engine speeds that can vary from 600RPM to 3300RPM. The Fire-Power™ series is the only hydraulic fire truck generator to incorporate the unique Precision Power CPU (patented 6394206). This makes Fabco's Firepower™ the only fire truck generator on the market to guarantee a frequency and voltage regulation of +/- 0% from no load to 110% load. This far exceeds NFPA standards.

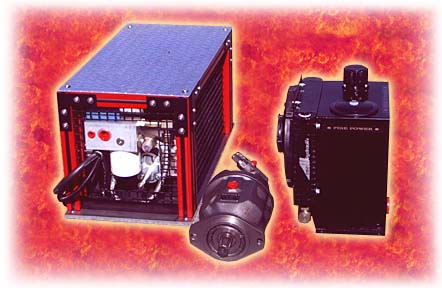

The Fire-power™ series is a modular fire truck generator system including a, hydraulic pump, hydraulic motor, generator, filtration system, oil cooler, Precision Power CPU (patented 6394206) and reservoir in two compact and lightweight components.

Fight Fire with Fire Power

The Fire-Power™ self-adjusts to compensate for oil temperature, ambient temperature, load changes and height above sea level to provide constant output regardless of the environment and best of all Never Needs Adjustment. Fabco includes an automatic Soft Start System as standard equipment. Our Soft Start System allows the Firepower™ to go from zero to 3600 RPM in 30 seconds. This protects all of the component parts from damage due to high torque and mechanical shock in non-accelerated starts and stops, especially in cold weather conditions. The system valves are electronically controlled, no needle valves that clog and deteriorate performance. Our 6 in 1 digital meter is a power-on indicator and clearly displays voltage, frequency, double line ammeter, RPM and elapsed time.
Remarkably Fire-Power™ Fire Truck Generators are the simplest of any generator to install,.no pump adjustment required. Firepower™ is so durable that Fabco Power provides a lifetime warranty to be free from manufacturers defects.

OUTSTANDING FEATURES

HYDRO-10K-MOD/ HYDRO 7.5K-MOD

  • Easy to Install, no pump adjustment required
  • Precision Power CPU (patented 6394206)
  • Frequency regulation +/- 0% from no load to 110% load
  • 2 Lightweight and compact components
  • Modular
  • Self adjusting, never needs adjustment
  • Electronically controlled valves
  • Soft-Start System (included)
  • Sturdy fiberglass frame, non-conductive or corrosive
  • Runs cooler than any generator on the market
  • Generator is Environmentally Clean and Non-Polluting
  • Complete Unit is Maintenance Free
  • Will operate while vehicle is in motion
  • Provides 120/240 Volts
  • Patented, Fury Precision Power Coupler
  • No needle valves that stick or to adjust
  • Far exceeds all current and proposed NFPA standards
  • Lifetime warranty from manufacturers defects
  • Diamond plate top provides a safe weight bearing surface
  • Available in red or yellow.

HYDRO-7.5K-MOD

KW 7.5
Amps 63/32
Volts 120/240
GPM 11
PSI 2600
Dimensions 31"L x 15.5"W x 16.5"H
Weight 230 lbs.
Cooler & Tank 15"L x 14"W x 17"H
Cooler & Tank Weight 40 lbs.

available in red or yellow

SAMPLE SPEC
price list
Fire Power 7.5 Modular generator

HYDRO-10K-MOD

KW 10
Amps 84/42
Volts 120/240
GPM 11
PSI 3100
Dimensions 31"L x 15.5"W x 16.5"H
Weight 240 lbs.
Cooler & Tank 15"L x 14"W x 17"H
Cooler & Tank Weight 40 lbs.

available in red or yellow

SAMPLE SPEC
price list
Fire Power 10kw modular generator

STANDARD EQUIPMENT FEATURES 10KW, 12KW

Patented Precision Power CPU

Fabco Precision Power CPU (patented)
A unique innovation that makes Firepower? the only generator to guarantee a frequency and voltage regulation of +/- 0% from no load to 110% load.

2 prewired connections

ONLY 2 EASY pre-wired CONNECTIONS.
Simplest of any generator to install, only 2 pre-wired connections to make. Thirty feet of cable and wire supplied.

7 in 1 digital Meter

7 in 1 digital meter Highly visible digital readout displays voltage, frequency, double line ammeter, RPM and elapsed time. Meter indicates power-on/off status.

Patented Fury precision power coupler

PATENTED, FURY PRECISION POWER COUPLER.
This ensures perfect alignment and provides chatter & vibration free operation thus guaranteeing extremely long coupling life.

Large Start / Stop Switch

Large START/Stop SWITCH
